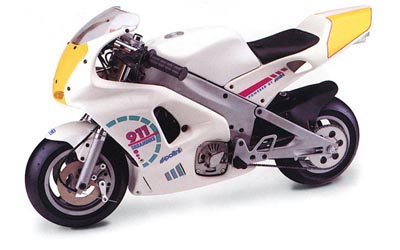

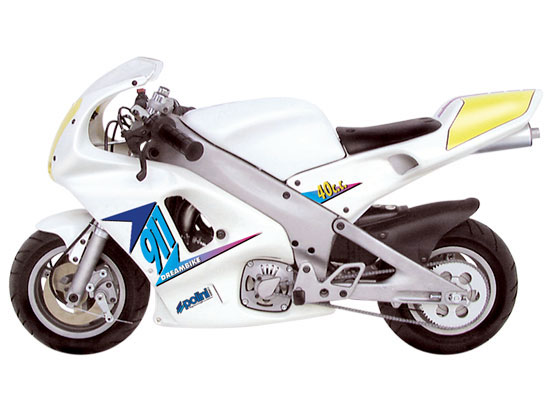

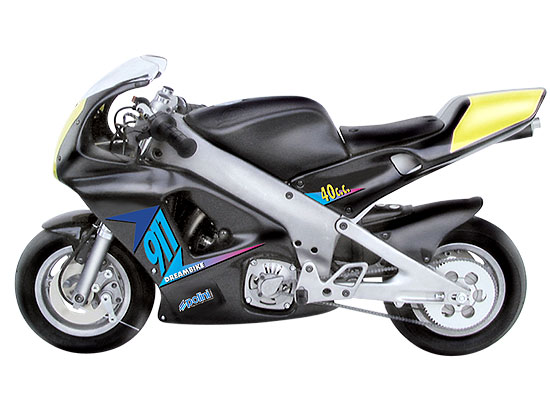

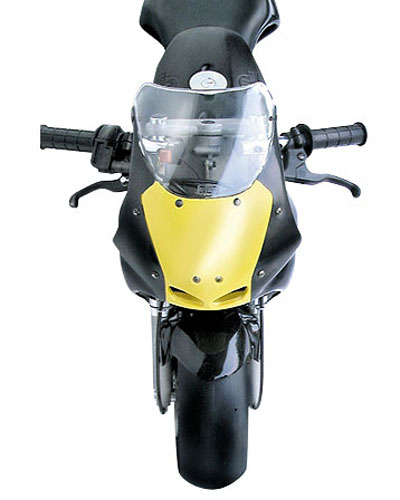

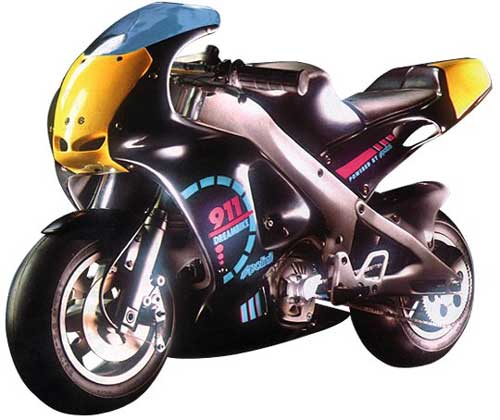

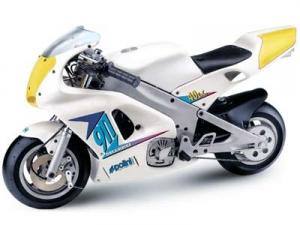

911 Dreambike SPECIFICATIONS |
|
PRODUCTION PERIOD |
1996 - NOW |
ENGINE TYPE |
two stroke monocylinder |
COOLING |
air or liquid cooled |
BORE AND STROKE |
36 x 39 mm |
DISPLACEMENT |
39.69 cc |
COMPRESSION RATIO |
16.2:1 |
AVAILABLE HP |
6.2 and 9.5 HP race prepared (liquid cooled) |
CARBURETOR |
(DELL'ORTO) SHA 14 - 14L |
IGNITION |
|
FUEL |
premium gas / 2% oil premix |
INTAKE |
reed valve in the crankcase |
STARTING |
pull start with self winding cable |
CLUTCH |
dry with centrifugal counter weights |
FRAME |
light alloy die-cast frame with double diagonal bar |

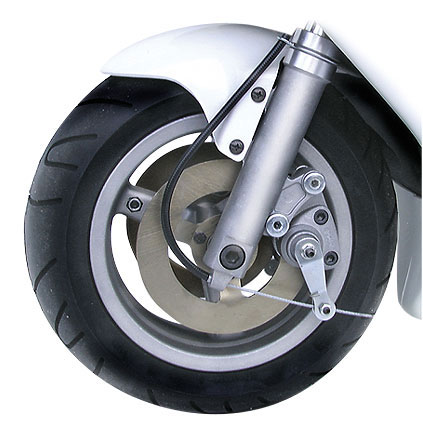

FRONT BRAKE |
2 x 122 mm |

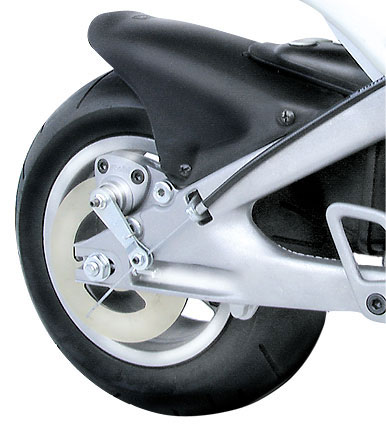

REAR BRAKE |
122 mm |
FRONT TIRE |
90/60 - R6.6 |
REAR TIRE |
100/60 - R6.1 |
FRONT WHEEL |
6.6" 3-SPOKE SPLIT RIM |
REAR WHEEL |
6.1" 3-SPOKE SPLIT RIM |

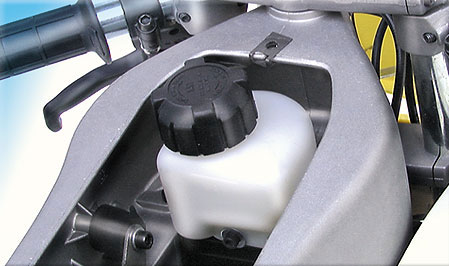

TANK |
2.4 Liters |
SPARK PLUG |
CHAMPION N2C or C55 |
WEIGHT |
23.5 Kg |
LENGTH |
1,205 mm |
WIDTH |
265 mm |
SEAT HEIGHT |
450 mm |
